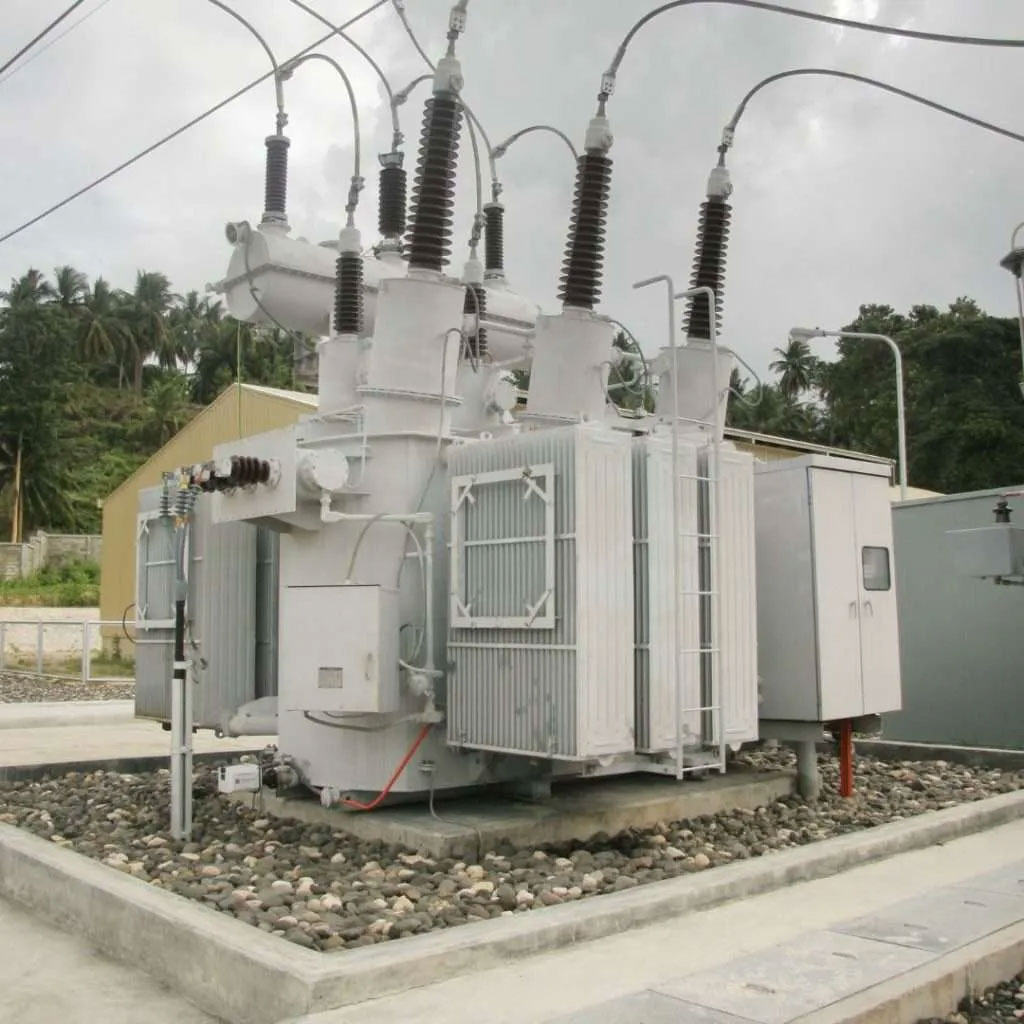

PHASE SHIFTER TRANSFORMERS

They are used to determine energy flow direction at connection points of high voltage grids. They are used to obtain different phase angles than inputs by using special coil structures at outputs.

Power and voltage of these transformers are limited to the capacity of the initial switch. Furthermore, customer and grid requirements should be understood well due to their role in the grid.

• Production capacity is up to 600MVA 550kV.
• Available application types; Single Active, Multiple Active, Booster, Autotransformer.
• Phase Angle adjustment up to ±45°.
